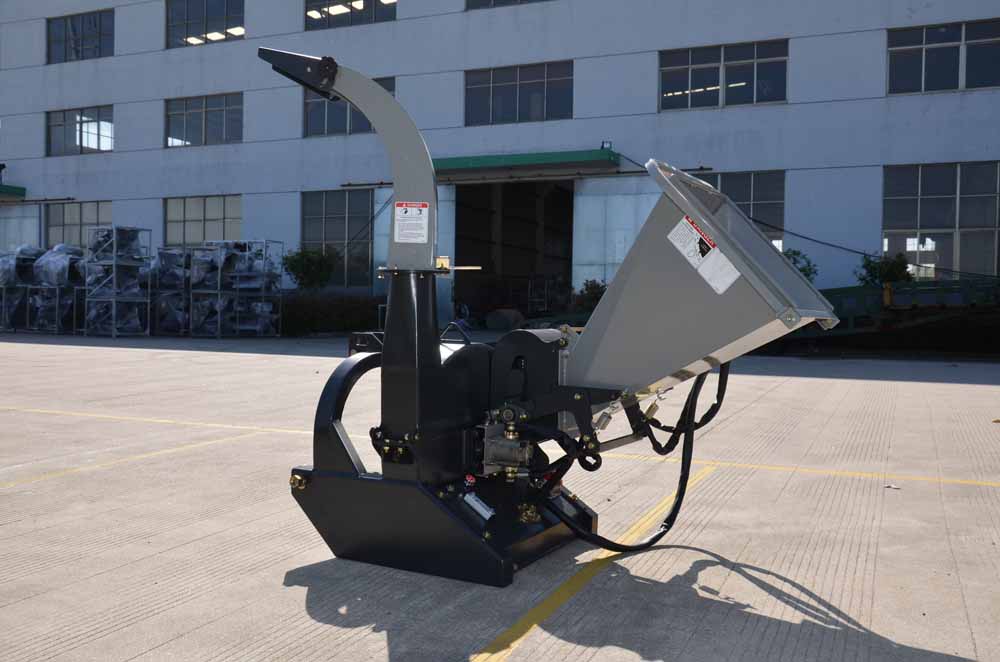

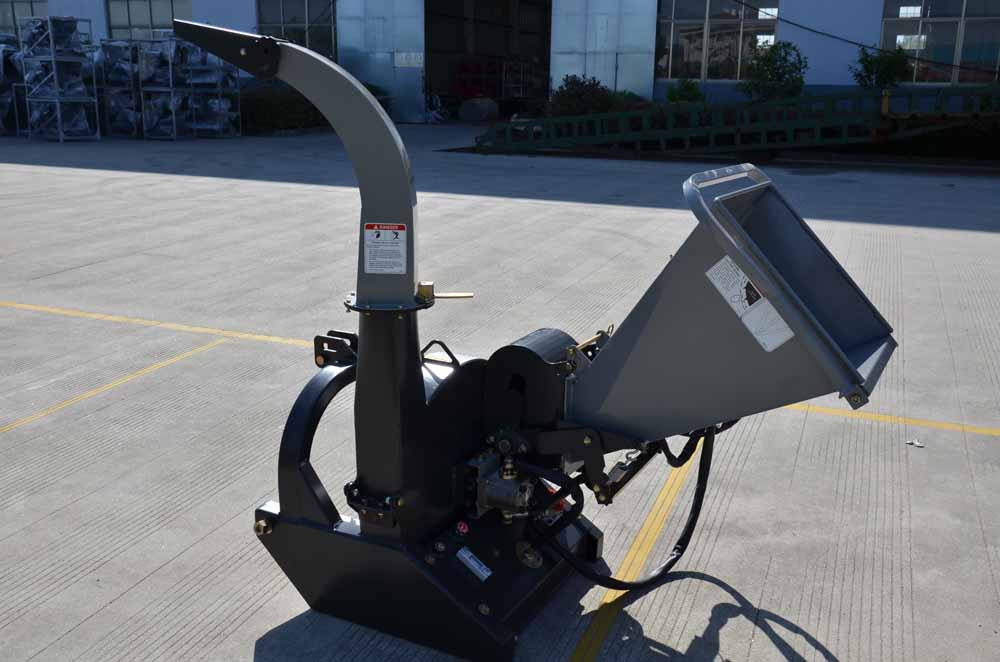

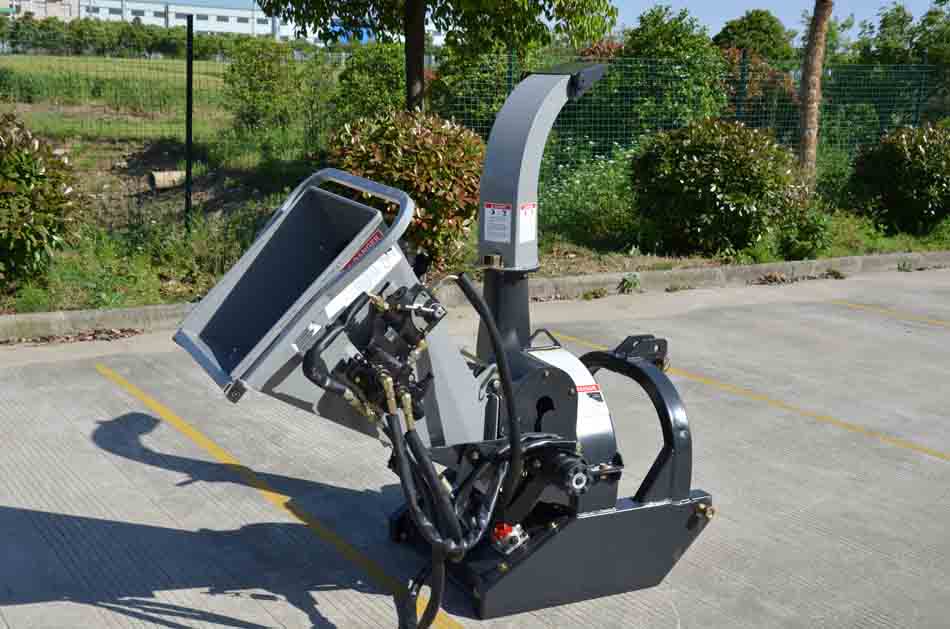

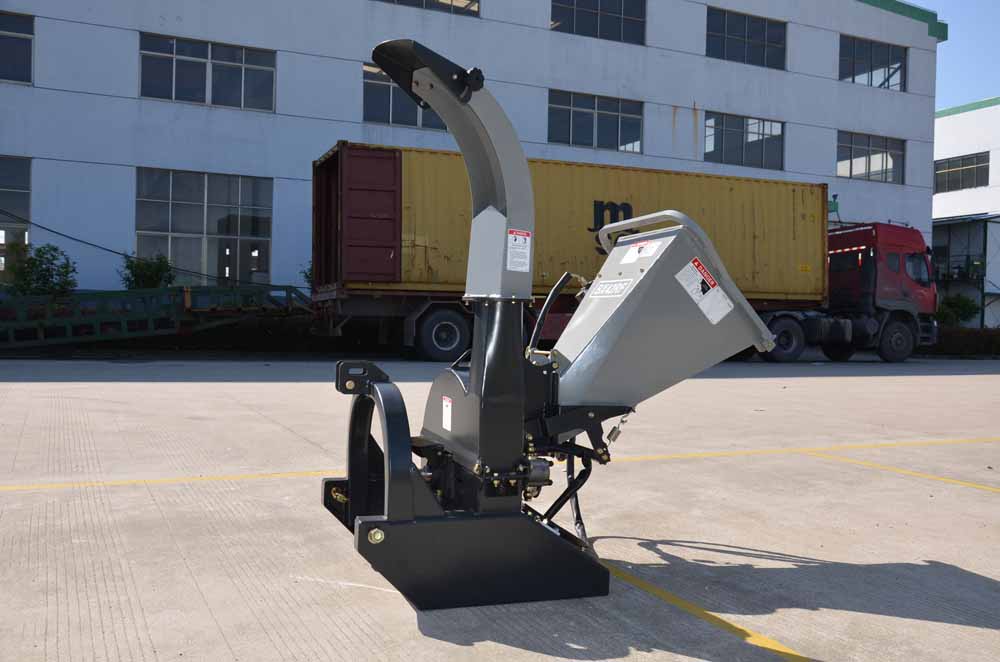

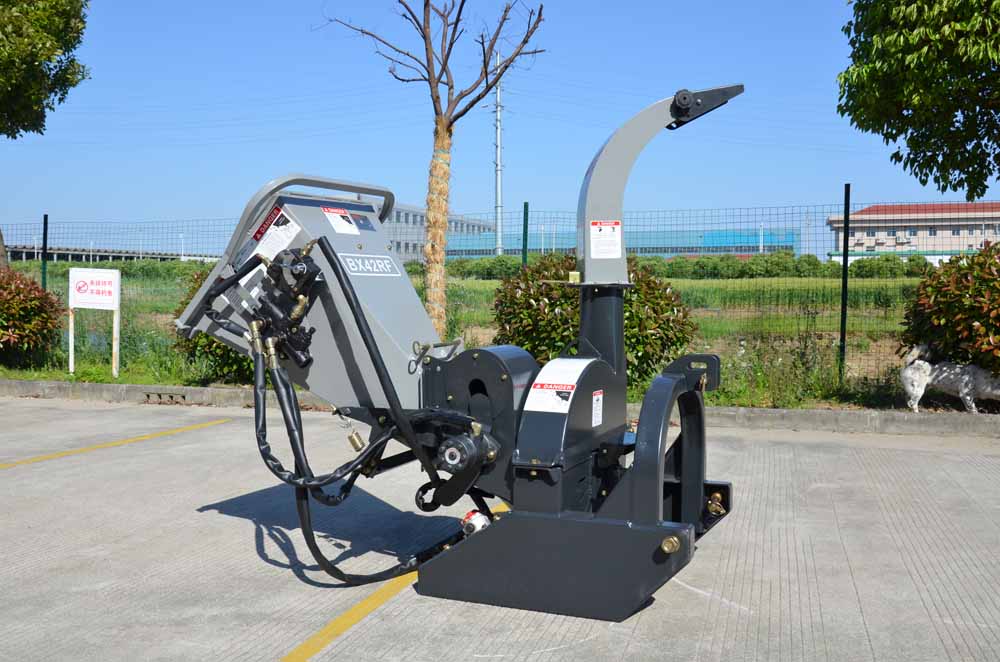

Farmer helper BX52RF wood chipper,with own hydraulic system,10Loil tank,no need to connect to tractor hydraulic system,4 height adjustment optional legs position(2.5”-7”),max chipping diameter is 6”,suitable for 18-60hp tractor.

▪Flexible,Strong and Efficient

▪117 lb.Flywheel

▪4 Reversible hardened tool steel blades.

▪Large 24”diameter 18mm(7/10 in)thick blade rotor.

▪Twig Breaker blower paddles

▪360 degree exhaust chute with adjustable defector

▪Works with 15 PTO Hp to 50 Hp

▪Holds 4.5 gallons of hydraulic fluid

THE FARMER HELPER BX52RF HYDRAULIC AUTO FEED CHIPPER...

▪Self contained hydraulic auto-feed system

▪Impressive 8”x8”capacity

▪117 lbs.solid steel flywheel.

▪Can handle tractors of 50 plus HP

▪Specifically designed for sub compact 15HP+PTO

▪Aggressive hydraulic powered in-feed roller

▪Self-contained hydraulic pump&Tank.

▪Formed from structural steel plate

▪The strongest plate steel available

▪Direct drive 40mm diameter main shaft

▪Hoses on the wcrf8 are covered in a nylon protective sheath

▪24”diameter 117lb.computer balanced flywheel

▪Hardened steel commercial style in-feed roller

▪In-feed roller with high carbon steel chisel teeth

▪Direct drive no drive belts to replace

▪Flywheel speed of 540RPM,with 4knives 36bites per second

▪High carbon reversible dual edge knives

▪Knives are bolted into a milled pocket in the flywheel

▪Adjustable bed knife to ensure that the proper knife gap is achieved

▪360 degrees of discharge rotation and 2 finger operation

▪High flow flywheel chamber ventilation

▪Fan paddle blades forcefully ejects the chips out

▪Works with a quick hitch or standard 3-point

▪Two heavy duty cast steel flange bearings support the 40mm main shaft

▪Variable speed hydraulic in-feed motor

▪Speed from(0-75FT./MIN)with pressure compensation flow control valve

▪Sloped in-feed bin to pull material into the chipper head

▪Adjustable feed roller tension springs

▪Flywheel housing of the wcrf8 opens up like a clam shell.

▪2Years warranty optional 4Years

▪Service department stocks a full line of replacement parts

▪Easy to activate hydraulic auto-feed stop safety bar

▪User can stop and even reverses the direction of the in-feed roller

▪Powered coat finish is baked on AT 450 degrees,and is thicker and more durable than ordinary paint.

▪Heavy baffle feature protects the user from chip blow-back.

Optional parts:no stress control system

Features-BX52RF

The motor is powered by the chippers’ self-contained hydraulic pump and tank.

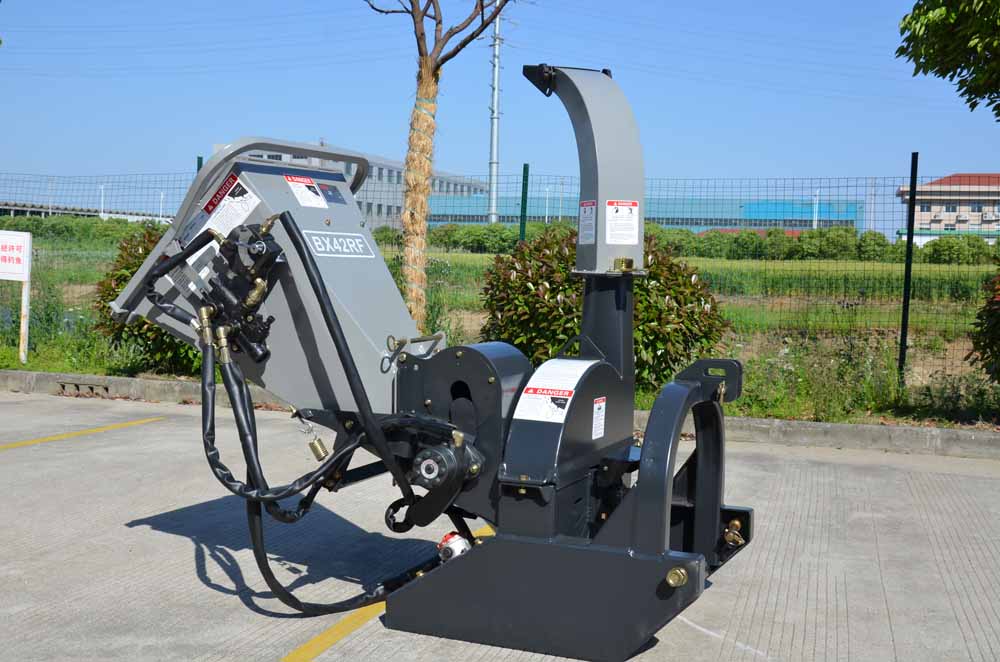

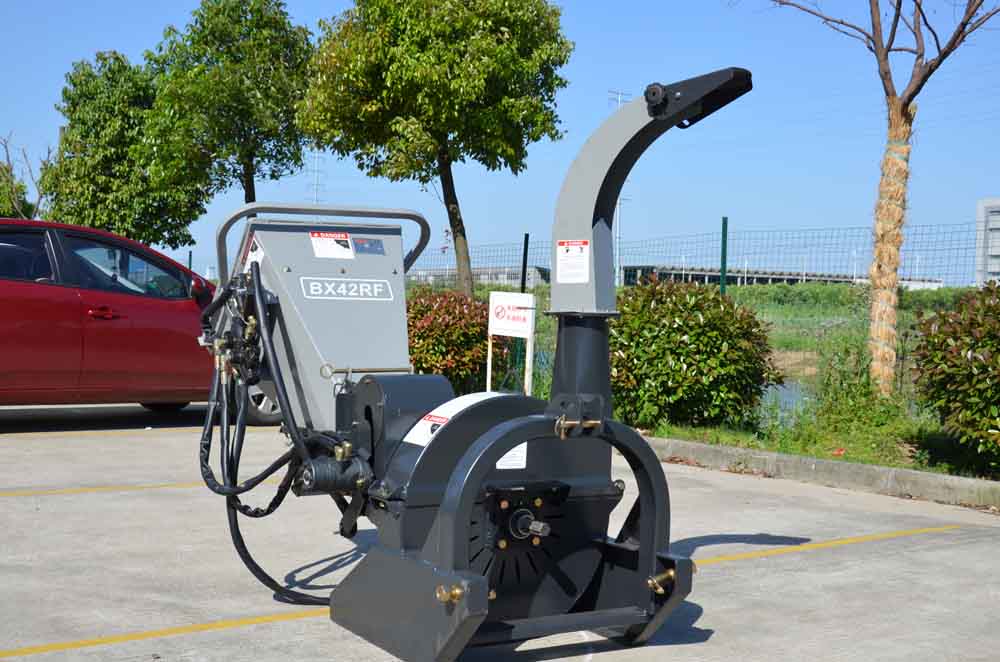

To compared with BX42R
a.Rotor more thickness
b.Chipper diameter enlarge from 4''to 8''
c.The chipper Housing Opening enlarge to 200*200mm to let more branches in.

Uses:
Farmer Helper BX52RF wood chipper, with own hydraulic system, 2.5 gallon oil tank, no need to connect to tractor hydraulic system, 4 height adjustment optional legs position(2.5’’-7’’), max chipping diameter is 6’’, suitable for 15-50hp tractor.

Feature:
With own hydraulic system,no need to connect to tractor hydraulic system

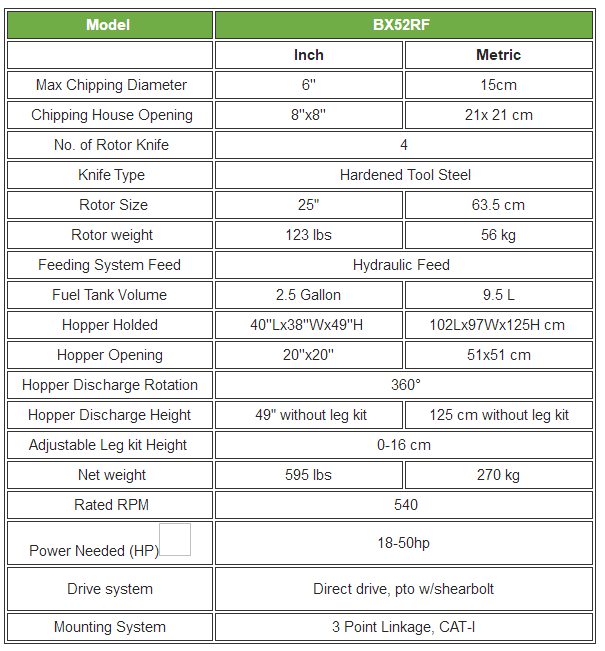

Data:
Flexible, Strong and Efficient
4 Reversible hardened tool steel blades.
Large 24” diameter 18mm (7/10 in) thick blade rotor.
Twig Breaker blower paddles
360 degree exhaust chute with adjustable defector.
Works with 15 PTO Hp to 50 HP
Self contained hydraulic auto-feed System
Impressive 8” x 8” capacity
117 lbs. Solid steel flywheel.
Can handle tractors of 50 plus hp
Specifically designed for sub compact 15 hp+ pto.
Aggressive hydraulically powered infeed Roller
Self-contained hydraulic pump & tank.
Formed from structural steel plate
The strongest plate steel available
Direct drive 40mm diameter main shaft
